【 3.5-inch touch screen 】 Three way intelligent switch panel infrared sensing+curtain dimming Tuya smart home central control

Smart Best Recommend
6 Reasons to Buy

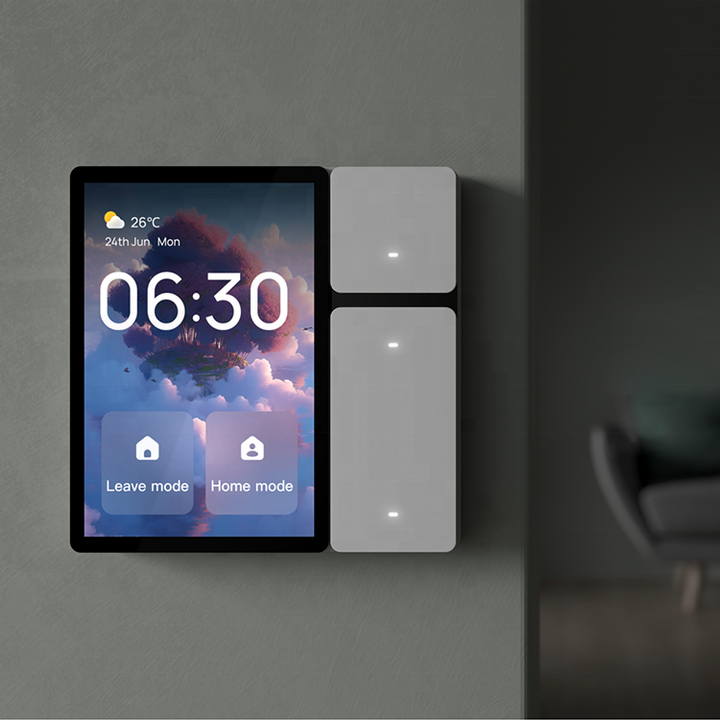

3.5-inch IPS touch screen
Supports multi touch operation, with a resolution of 480 × 320 pixels and delicate display effect
Reduce the probability of accidental contact by 80% compared to traditional mechanical switches, with an operational response speed of less than 0.3 seconds

Multi protocol compatibility
Simultaneously supporting Tuya/Mijia dual ecosystems, capable of linking 200+smart devices
Built in Bluetooth Mesh gateway, allowing local control of smart devices even when the network is disconnected

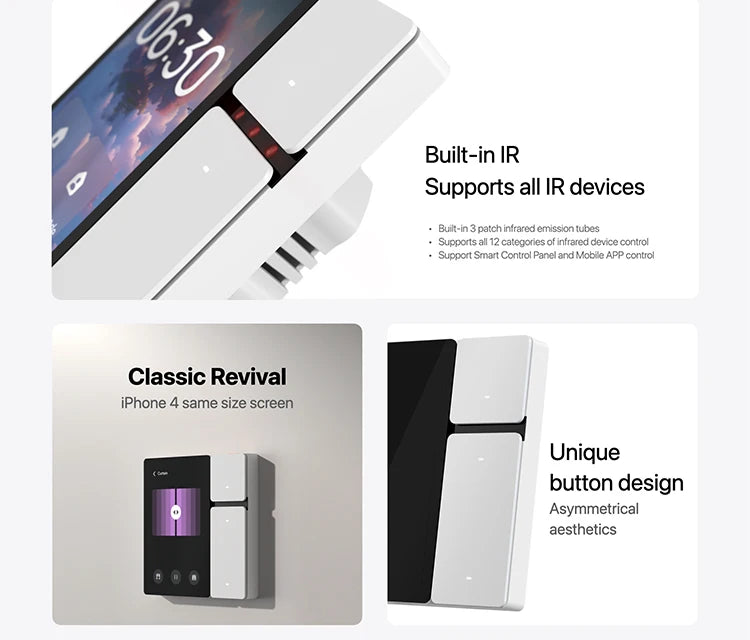

Infrared universal remote control
Built in infrared emission module, capable of learning remote control signals for home appliances such as air conditioning/TV
Up to 32 sets of infrared commands can be stored, supporting one click triggering of scene modes

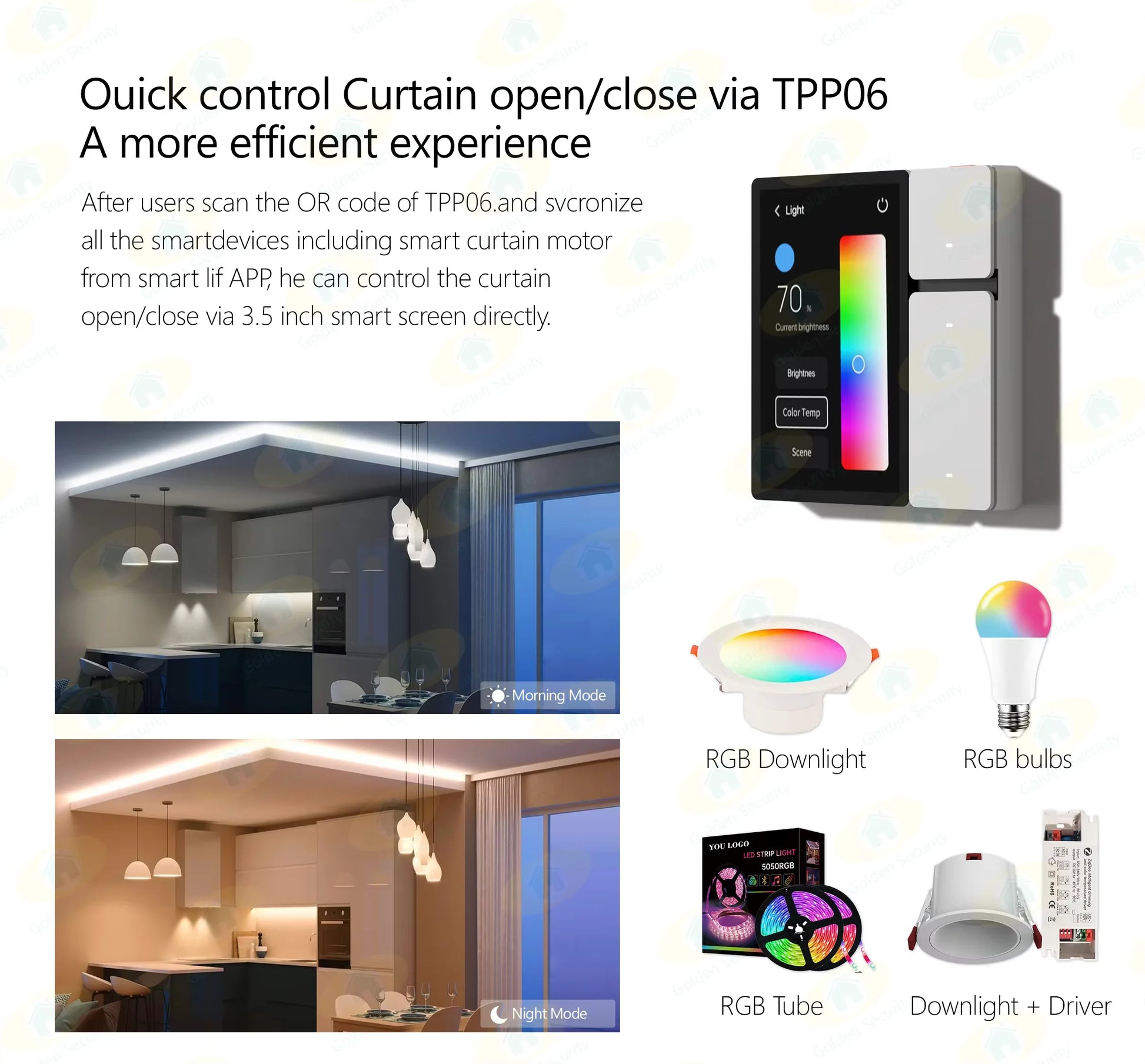

Curtain motor control
Compatible with mainstream RF433/485 protocol curtain motors, supporting percentage precise dimming
Intelligent scenes with automatic opening of curtains at sunrise and automatic closing of curtains at sunset can be set

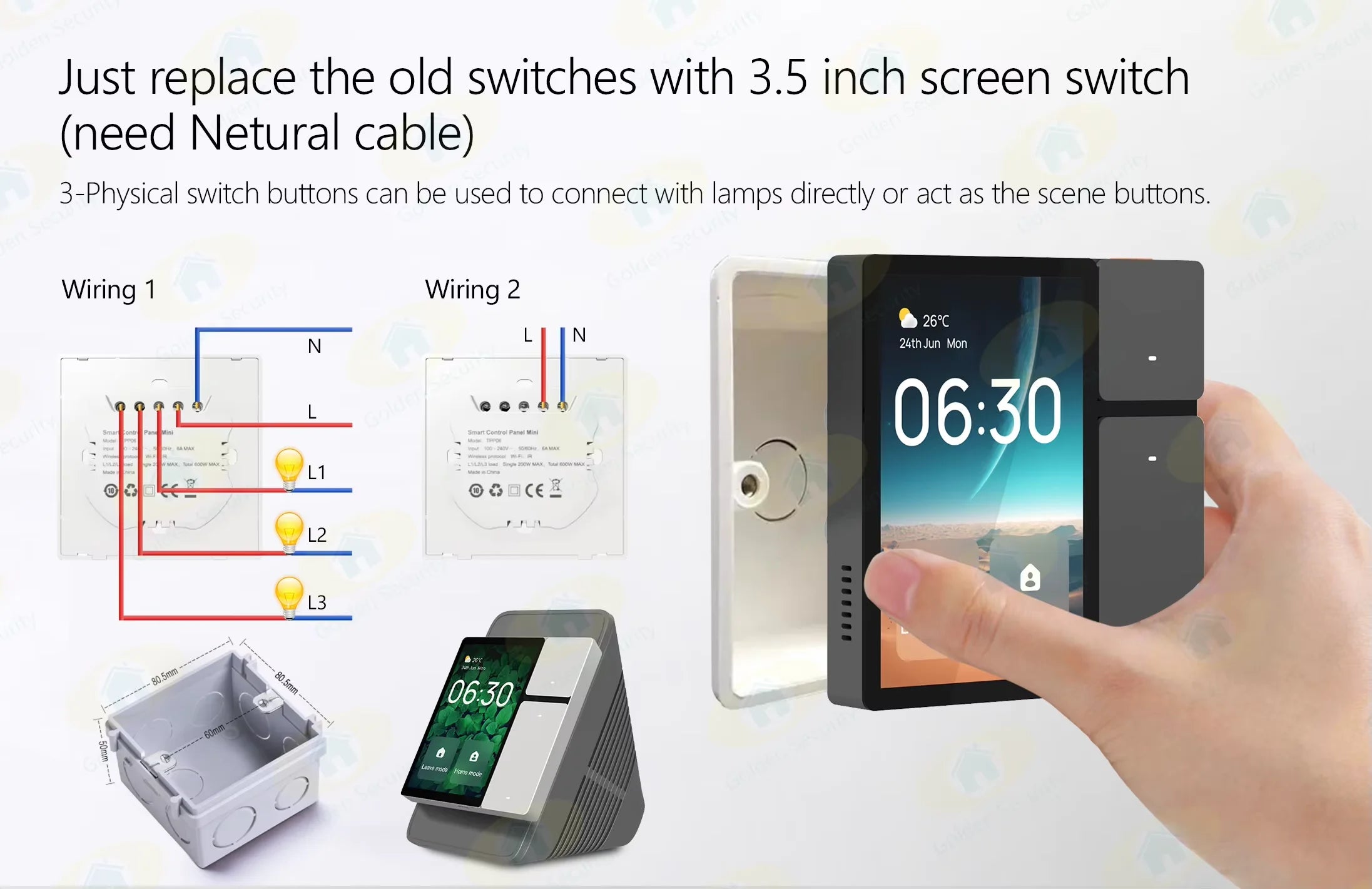

Standardized installation
Adopting the 86 type bottom box specification, it can directly replace traditional switches
Three relay independent control, maximum load 2500W/circuit

Security protection
Triple protection against overload, short circuit, and overheating, certified by CE/FCC
The panel is made of V0 grade flame-retardant material, with a working temperature of -20 ℃~60 ℃

Sales Manager Discount
UP TO 39% OFF
The discount information has been released!
Place your order now and we will ship your order at the discounted price as soon as possible.
Original price of 130 is now only 79.99, this item is 39% off!
Please note the expiration date of the discount.

Customer Service Update
Latest Evaluation
Touch interaction
3.5-inch IPS capacitive screen supports 5-point touch, with a surface hardness of 6H and a light transmittance of 90%
Tempered glass panels have passed CE certification, with an operational response delay of less than 0.3 seconds
Infrared control
Built in infrared learning module, capable of storing 32 sets of home appliance remote control commands, compatible with air conditioning/TV and other devices
Infrared signal coverage angle of 120 °, maximum control distance of 8 meters
Window curtain dimming
Support RF433/485 protocol curtain motor, adjustable opening and closing percentage accuracy ± 5%
Linking lighting sensors to achieve automatic curtain opening in sunrise scenes

Customer after-sales service
Use Tips
Electrical parameters
Three relay independent control, single load 2500W (resistive load)
Network configuration
Dual mode connection (Wi Fi+Bluetooth Mesh), allowing for local execution of scenarios when the network is disconnected
Tuya App needs to enable "infrared learning" permission to record remote control signals

Customer after-sales service
Usage Guidelines
Power must be cut off during installation, and use in environments with humidity greater than 80% is prohibited
When learning infrared, the remote control should be aimed within 3cm of the top of the panel
Maintenance suggestions
Clean the touch screen with a damp cloth every month and prohibit alcohol based solvents
Turn off the power when not in use for a long time to avoid standby power consumption (standby power consumption 0.5W)
